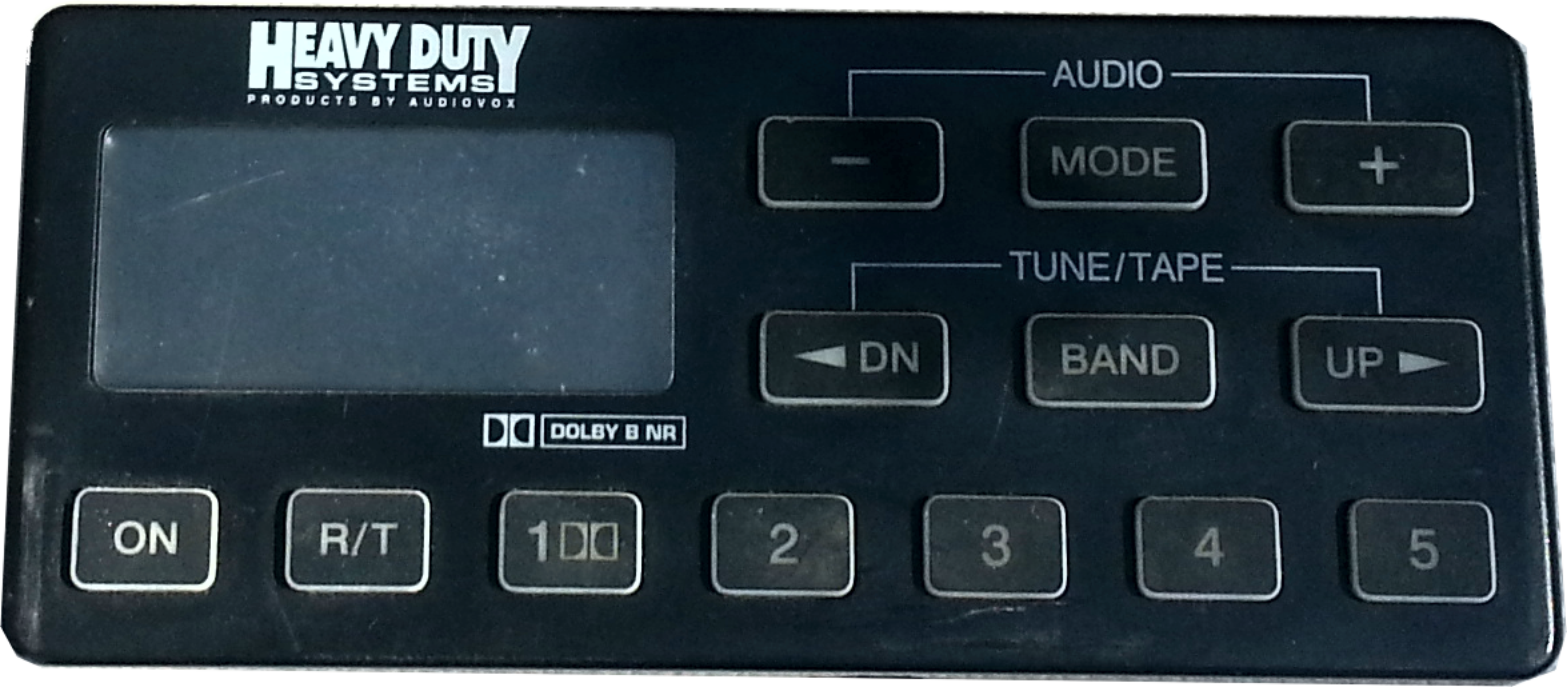

Heavy Duty Systems HD 500 is printed on the face of a 2 piece system factory install on a lot of construction equipment as your entertainment package. This Audivox product was used heavily on skid steers. This is a 2 piece system with a visible control head usually mounted in front of operator. The main tuner box is usually hid beside or behind the seat. Removing a cover will expose the larger tuner box about the size of a small cigar box. If you are interested in one of our replacement systems you will need get at the tuner box to determine whether you have a 12 volt or 24 volt system. Both share the same head control. Heavy Duty Radios has engineered a easy to install replacement. Mount the main control, route the supplied cable down to the hidden tuner box and plug it in.

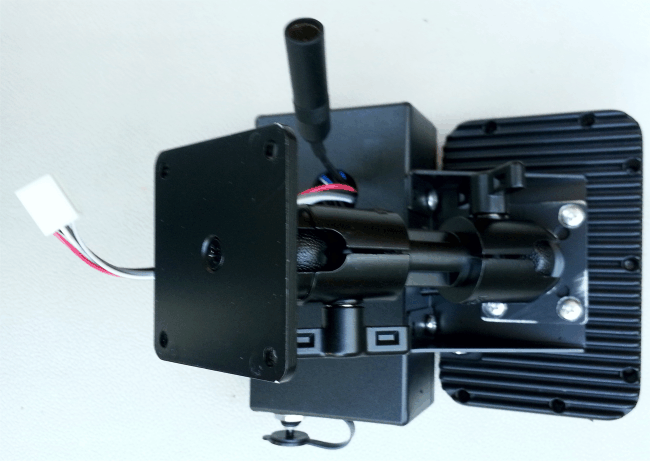

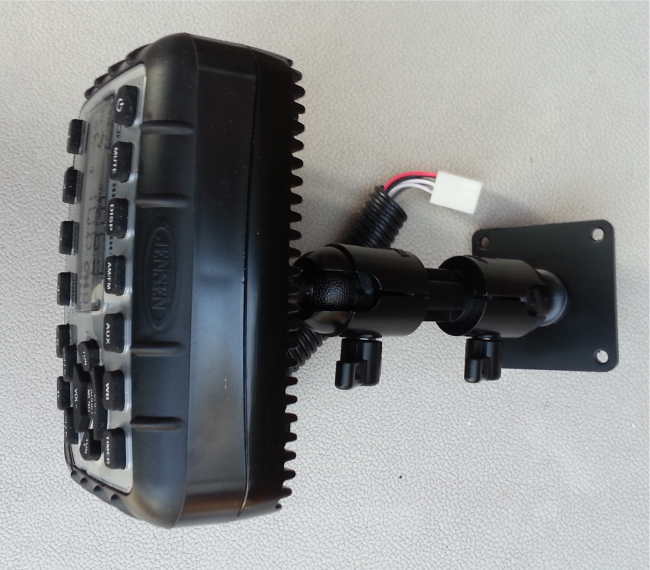

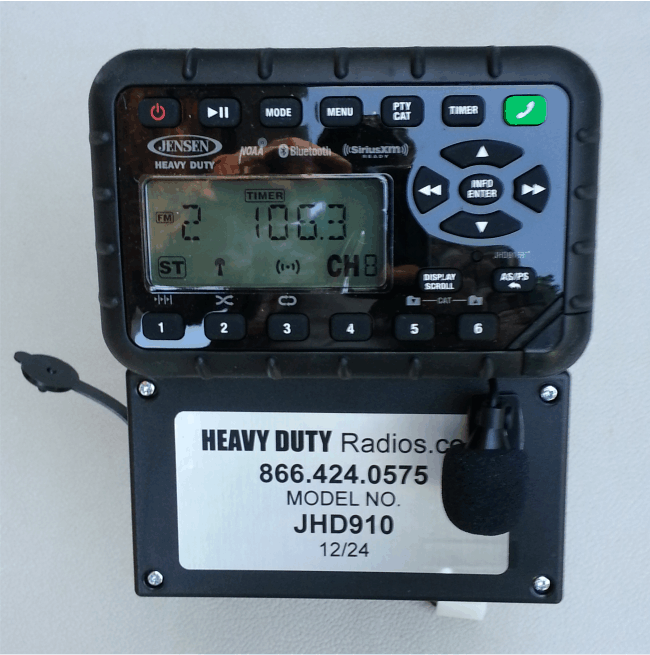

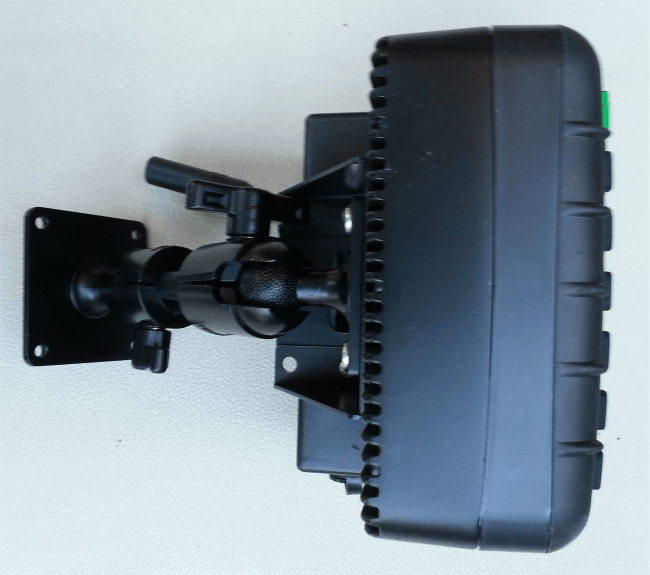

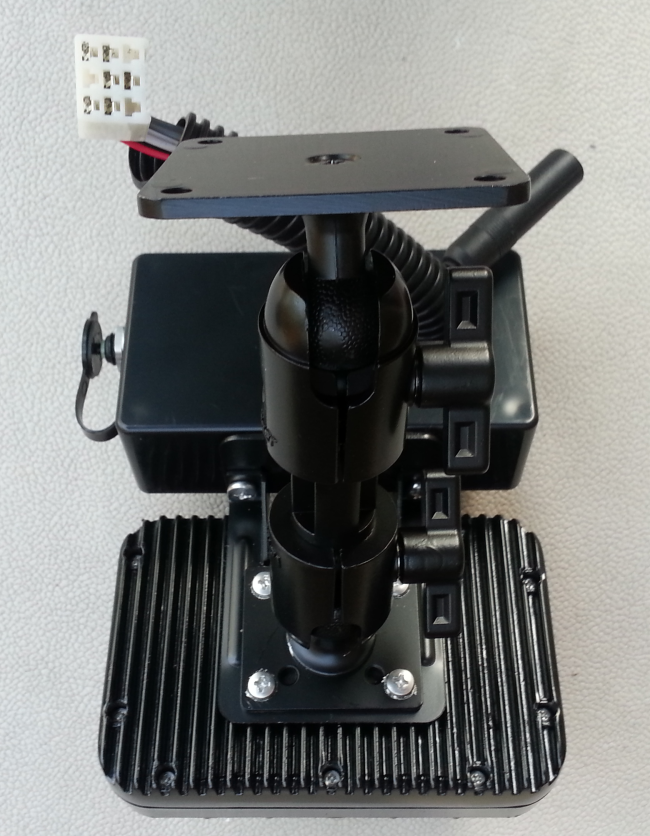

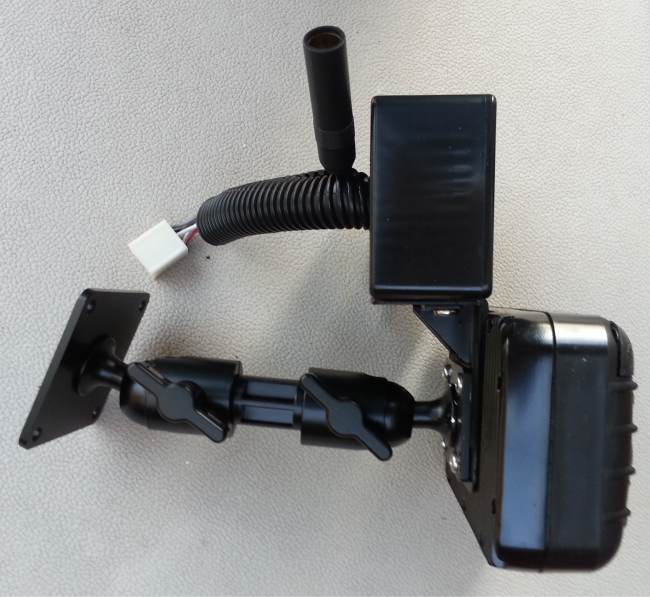

At Heavy Duty Radios we were getting a lot of inquires about replacing this particular system. With input supplied by our customers we were able to put together a easy solution to replace the 2 pieces. Here we are showing 2 versions. Both versions are available in either 12 volt or 24 volt configurations. All come with a plug and play harness that makes it easy for you to complete the switch over. You choose what features you need. Both come with mounted 6in adjustable pedestal. The JHD962BT version comes with the JMICHFP Bluetooth mike.
At Heavy Duty Radios we were getting a lot of inquires about replacing this particular system. With input supplied by our customers we were able to put together a easy solution to replace the 2 pieces. Here we are showing 2 versions. Both versions are available in either 12 volt or 24 volt configurations. All come with a plug and play harness that makes it easy for you to complete the switch over. You choose what features you need. Both come with mounted 6in adjustable pedestal. The JHD962BT version comes with the JMICHFP Bluetooth mike.
System Features • 50 watts max power (25W x 2); 20 watts RMS (10W x 2) • Bluetooth® streaming audio (A2DP/AVRCP) • Water and UV resistant front panel (IPX6) • Weatherband • AM/FM tuner with 30 presets • Rear USB port for device charging (1 amp output) • Stereo pre-amp line-level output (2V RMS) • Amplifier remote trigger (12VDC) • Audio settings (volume/bass/treble/balance/fade) • Toggle switch between day and night display • Daylight-readable, segmented LCD • 2-wire power with non-volatile memory and clock support • Low battery alert • Work time FEATURING NEWEST MODEL
Owners Manual
Owners Manual
System Features of JENSEN JHD962BT mobile audio system include: • 50 watts max power (25W x 2); 20 watts RMS (10W x 2) • Bluet oth® streaming audio (A2DP/AVRC ) and handsfree calling (HFP) - compatible with JMICHFP and JMICHFP2 microphones (sold separately) The JMICHFP2 requires cutting a hole to mount. • Water and UV resistant front panel (IPX6) • App control ready • DAB+ (Digital Audio Broadcasting) Not used in the USA • Weatherband • AM/FM tuner with 30 presets • RBDS (Radio Broadcast Data Service) with PTY search • Rear USB port for device charging (1 amp output) Not for USB input. • Stereo pre-amp line level output (2V RMS) • Amplifier remote trigger (12VDC) • Audio settings (volume/bass/treble/balance/fade) • Toggle switch between day and night display • Full dot matrix LCD • 2-wire power with non-volatile memory and clock support • Remote turn on • Low battery alert • Work time. FEATURING NEWEST MODEL
Owners Manual
Owners Manual
ADD YOUR ACCESSORIES. Select what you want extra in the build up for your HD 500 Replacement. By adding a accessory to your CART now it will be wired and installed into the HD 500 REPLACEMENT version you have selected
|
SXV300V1
Add a Sat Turner to the JHD916BT. Listen to your favorite stations. Does require a Sat Antenna included with package. Price reflects installation with the JHD916BT
ADD $145.00
Add a Sat Turner to the JHD916BT. Listen to your favorite stations. Does require a Sat Antenna included with package. Price reflects installation with the JHD916BT
ADD $145.00

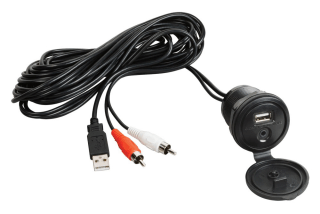

JENAUX
Plugs into the back of the JHD916BT. Gives you a USB and a 3.5mm AUX input. We will install it in the ACC box mounted below the radio Price reflects installation with the JHD916BT
ADD $49.00
Plugs into the back of the JHD916BT. Gives you a USB and a 3.5mm AUX input. We will install it in the ACC box mounted below the radio Price reflects installation with the JHD916BT
ADD $49.00

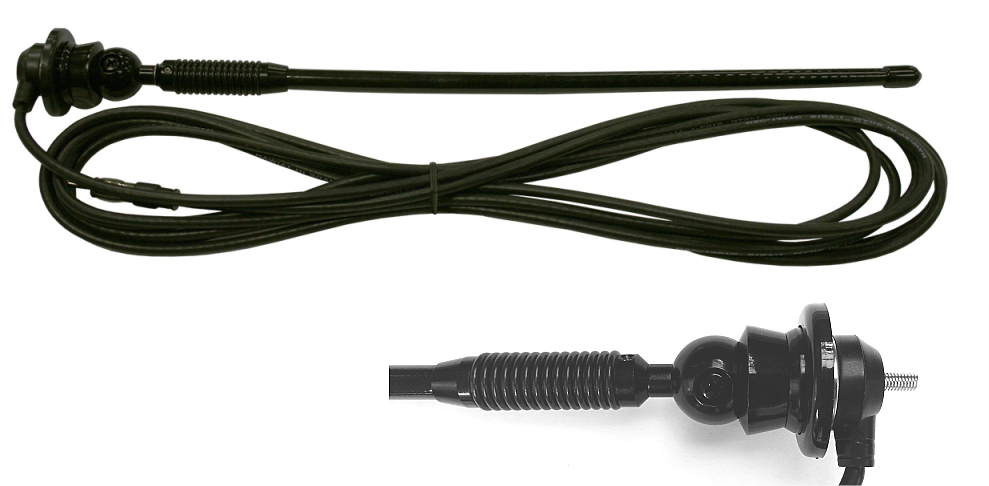

210066
Need a new antenna for your equipment. This is a great antenna for replacing the old one or adding it as a new install. Mounts through a single small 3/8 in hole. You will need to both sides of the install area to mount. 60in cable mast 16in flex rubber style. With spring. Very well made antenna. Will plug into all versions
Need a new antenna for your equipment. This is a great antenna for replacing the old one or adding it as a new install. Mounts through a single small 3/8 in hole. You will need to both sides of the install area to mount. 60in cable mast 16in flex rubber style. With spring. Very well made antenna. Will plug into all versions

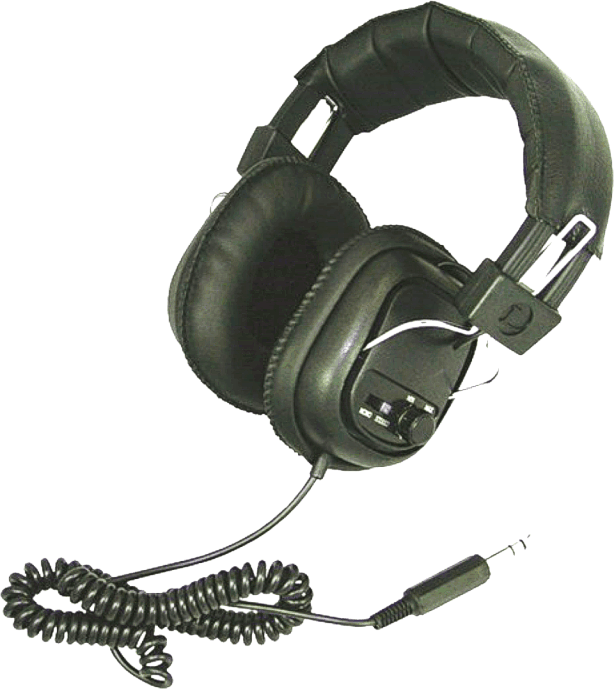

REI #480042L Headphones
Wide comfortable headband. Independent Volume controls
Stereo / mono switch
Works on JHD910 & JHD916BT only
COST $65.99
Wide comfortable headband. Independent Volume controls
Stereo / mono switch
Works on JHD910 & JHD916BT only
COST $65.99

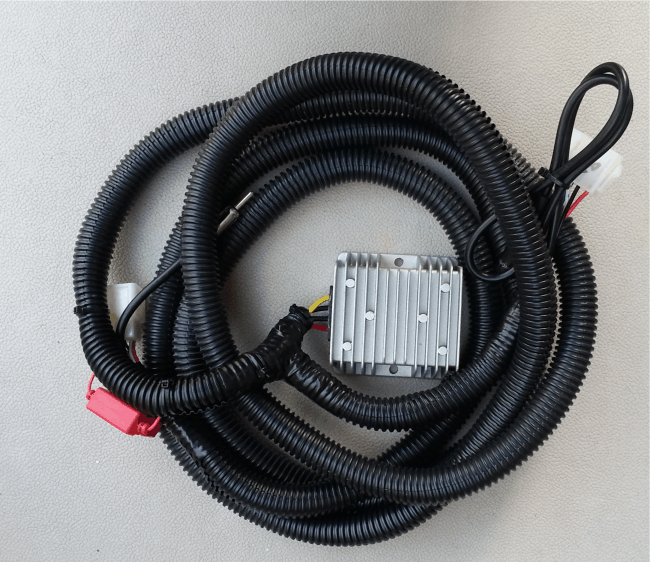

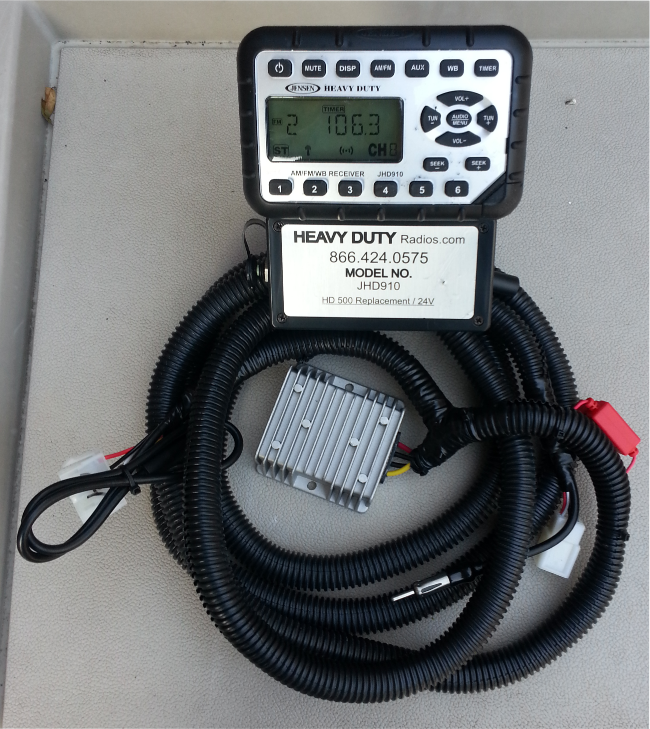

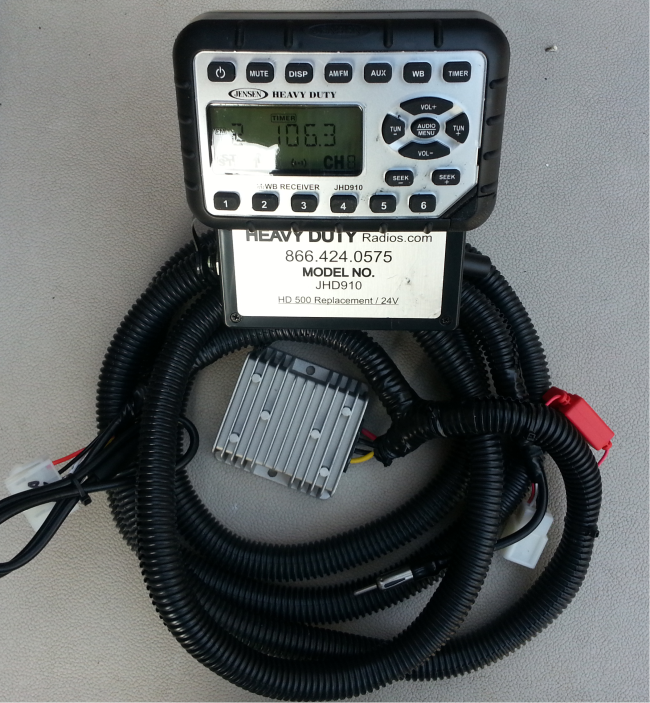

Shown here with the headphone connector mount in the accessory box below JHD910. 24 volt version with inverter mounted close to JD 500 tuner box connector
|
|
|
|
|
|
JHD 922BT / 12V/24V $420.00 / 451.99
JHD 962BT / 12V/24V $527.99 / 561.99
$145.00
$49.00
$65.99
$26.99
MAKE SURE YOU SELECT THE CORRECT VOLTAGE
MAKE SURE YOU SELECT THE CORRECT VOLTAGE
If you are needing as well to replace your equipments speakers we have 2 versions that are the most popular to use as replacements. The most common version and easy to mount would be the JXHD35s. These are sold as a pair. Come with wire and some mounting hardware.
JXHD35 $79.00
- Heavy Duty 3.5" MINI Weatherproof Surface Mount Speakers
- Max Power: 30 Watts
- ASTM B117 Salt Spray Exposure Standard Compliant
- ASTM D4329 UV Exposure Standard Compliant
Brackets and wire includes with speakers
- Max Power: 30 Watts
- ASTM B117 Salt Spray Exposure Standard Compliant
- ASTM D4329 UV Exposure Standard Compliant
Brackets and wire includes with speakers

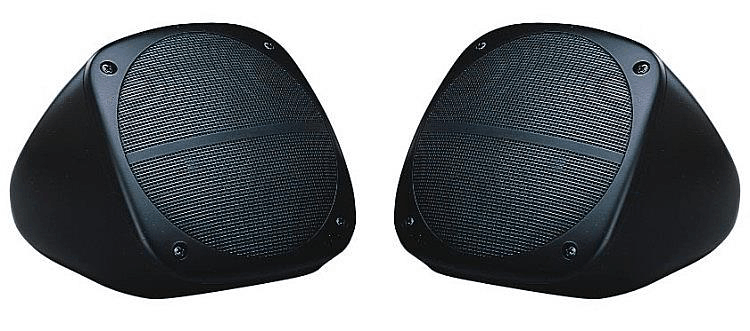

The second pair would be the HDS3000 version. These appear in several years of several brand of skid steers. They were mounted in the corners above. These should be a very good replacement even to the point of just switching out the speakers only and keeping the original enclosures. Sold as a pair.
- Heavy Duty Dual Cone Surface-Mount Speakers
- Max Power Handling: 60 watts
- RMS Power: 30 watts
- Weatherproof Speakers
- Speaker Color: Black
- Overall Dimensions: 6.69" x 4.76" x 4.43" each
WIRE ATTACHED
SOLD AS PAIR
- Max Power Handling: 60 watts
- RMS Power: 30 watts
- Weatherproof Speakers
- Speaker Color: Black
- Overall Dimensions: 6.69" x 4.76" x 4.43" each
WIRE ATTACHED
SOLD AS PAIR
HDS3000 $85.98
|
|
|
|
|

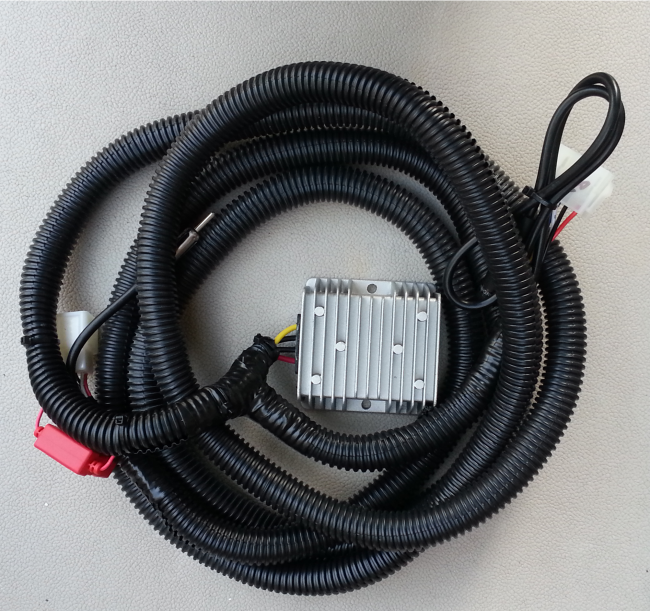

Shown here with the headphone connector mount in the accessory box below JHD916BT. 24 volt version with inverter mounted close to JD 500 tuner box connector
