HD99BT RADIO 12/24v $245.99
$260.99
Caterpillar
Caterpillar
$260.99
Doosan
Doosan
$260.99
Hyundai
Hyundai
$260.99
John D/Hitachi
John D/Hitachi
866.424.0575

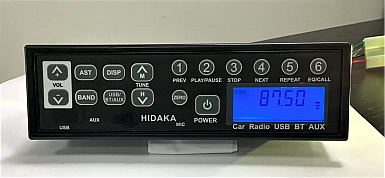

HD99BT 12/24-Volt Bluetooth Radio for Excavators and Heavy Equipment
The HD99BT is a rugged 12/24-volt Bluetooth radio built for excavators, loaders, graders and other heavy equipment. Automatic voltage switching allows the same radio to operate on either a 12-volt or 24-volt negative-ground electrical system without requiring a separate voltage converter.
Stream music, podcasts and internet radio from your phone, listen to AM/FM broadcasts or connect an audio device through the front auxiliary input. Its shallow chassis and weather-resistant front panel make the HD99BT a practical choice for equipment where mounting space and operating conditions can be demanding.

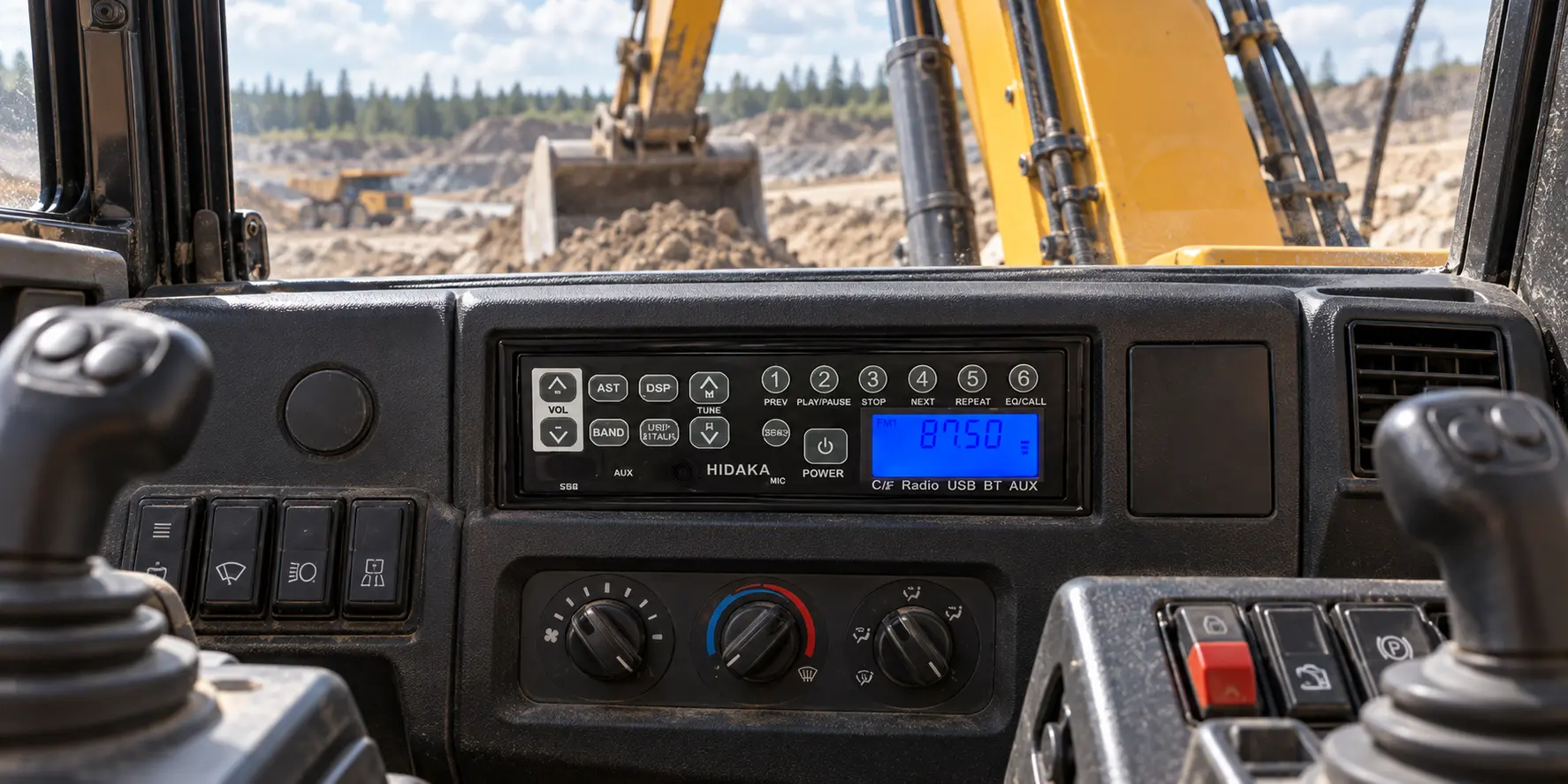

HD99BT 12/24-volt Bluetooth radio installed in a large excavator cab
One Radio for 12-Volt and 24-Volt Equipment
Most equipment radios are designed for only one operating voltage. The HD99BT automatically adapts to either a 12-volt or 24-volt negative-ground electrical system. This makes it especially useful for mixed equipment fleets containing excavators, loaders, graders, tractors and commercial vehicles with different electrical systems.
HD99BT Features and Specifications
- Automatic operation on 12-volt or 24-volt negative-ground electrical systems
- Bluetooth audio streaming from compatible phones and devices
- USB audio playback
- Front 3.5mm auxiliary input for compatible audio devices
- AM/FM radio with digital tuning and station presets
- Built-in clock with LCD display
- Designed for excavators, loaders, graders and other earthmoving equipment
- Suitable for many Sumitomo, Komatsu, Kato, Case, Sanyo and Kobelco applications
- Weather-resistant front panel and vibration-resistant construction

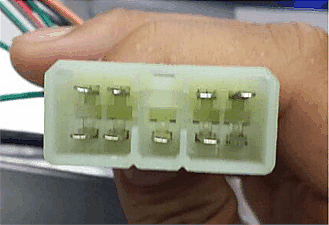

- Includes a Komatsu-style equipment connector
- Includes a removable universal hardwire pigtail with wiring instructions
- Maximum current draw: 5 amps
- Rated output: 5 watts × 2 at 12 volts
- Rated output: up to 20 watts × 2 on 24-volt equipment
- Radio-only dimensions: approximately 7 inches wide × 2 inches high × 2.8 inches deep
- Dimensions with trim plate: approximately 7.3 inches wide × 3.3 inches high × 2.2 inches deep
- Weight: approximately 1.5 pounds
HD99BT Equipment-Specific Harness Options
Heavy Duty Radios offers the HD99BT with several equipment-specific wiring connections. These options can reduce installation time by matching the radio to the existing connector used in many popular excavators and other heavy-equipment applications.
Available connection options include:
- Komatsu-style connector

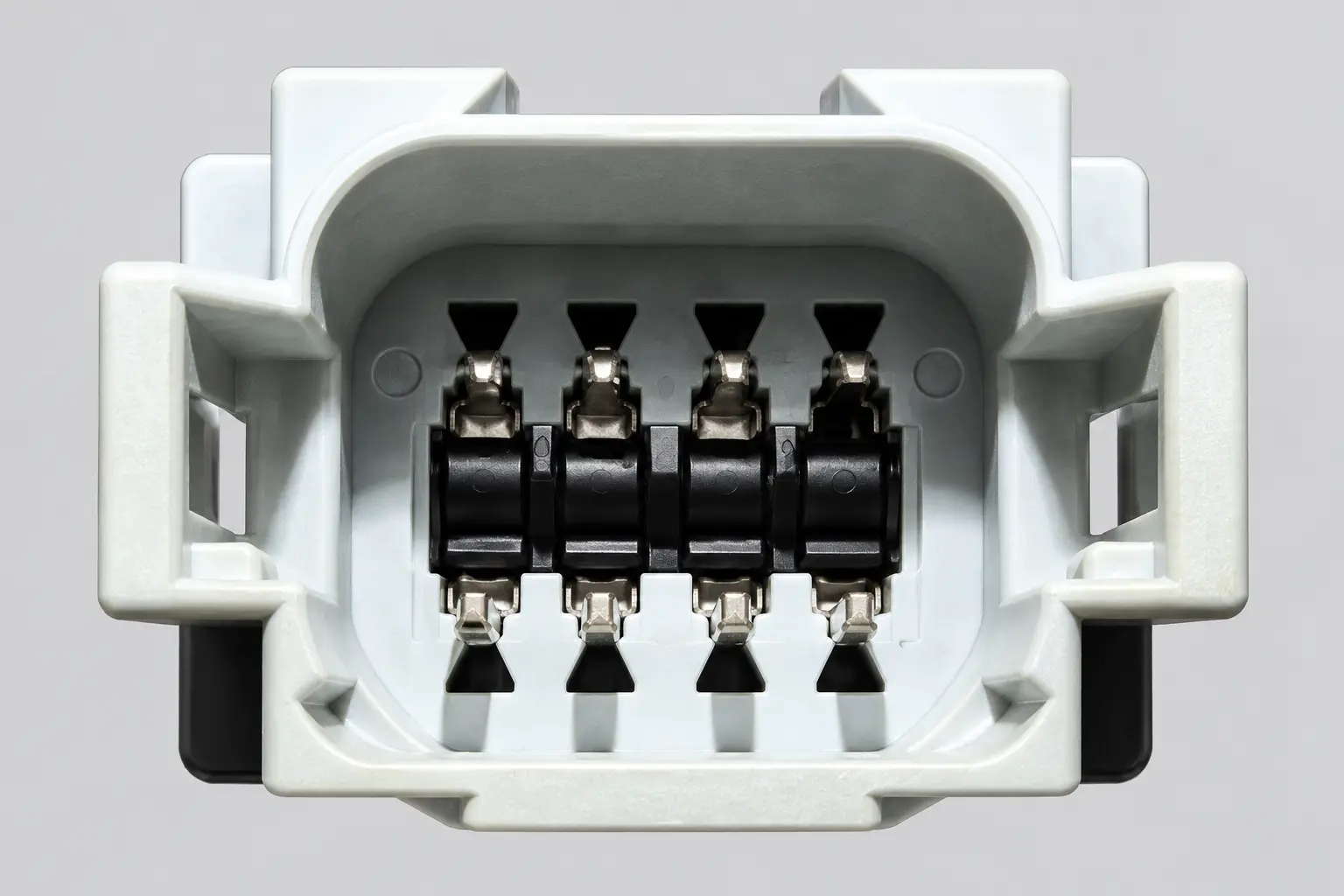

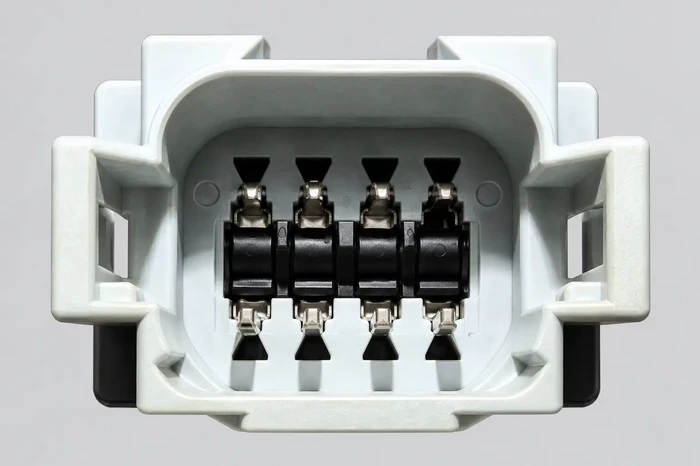

- Caterpillar equipment connector

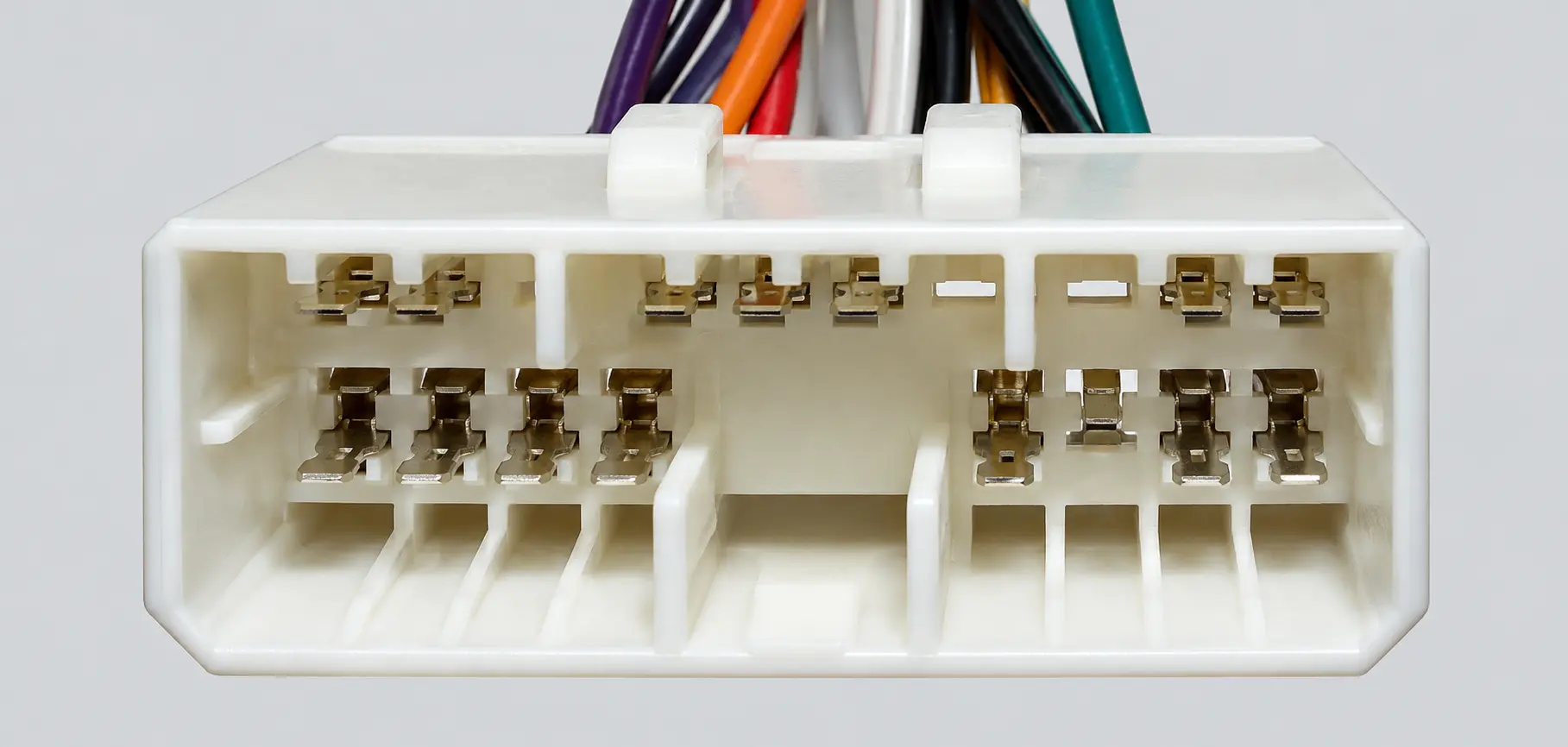

- Doosan equipment connector

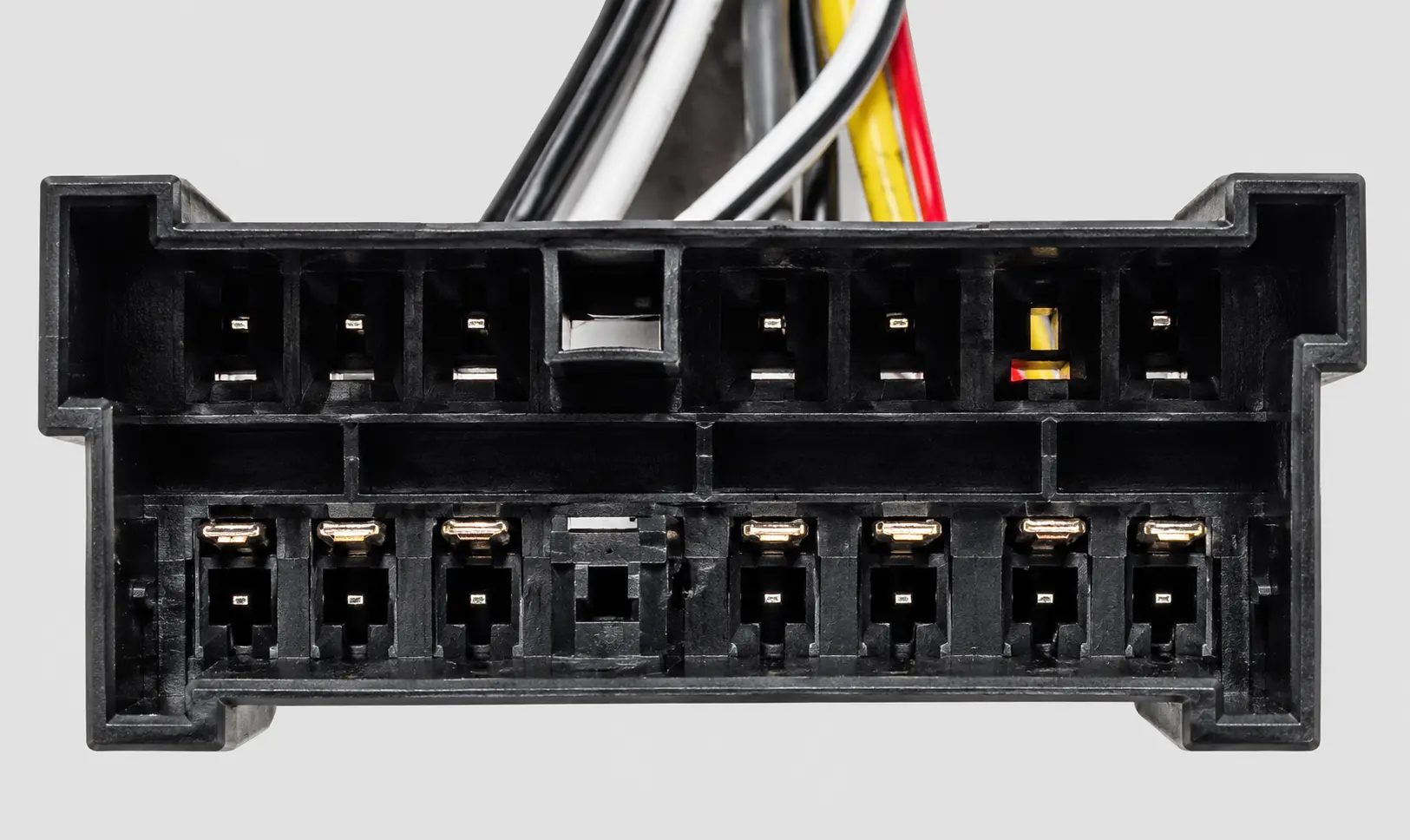

- Hyundai equipment connector

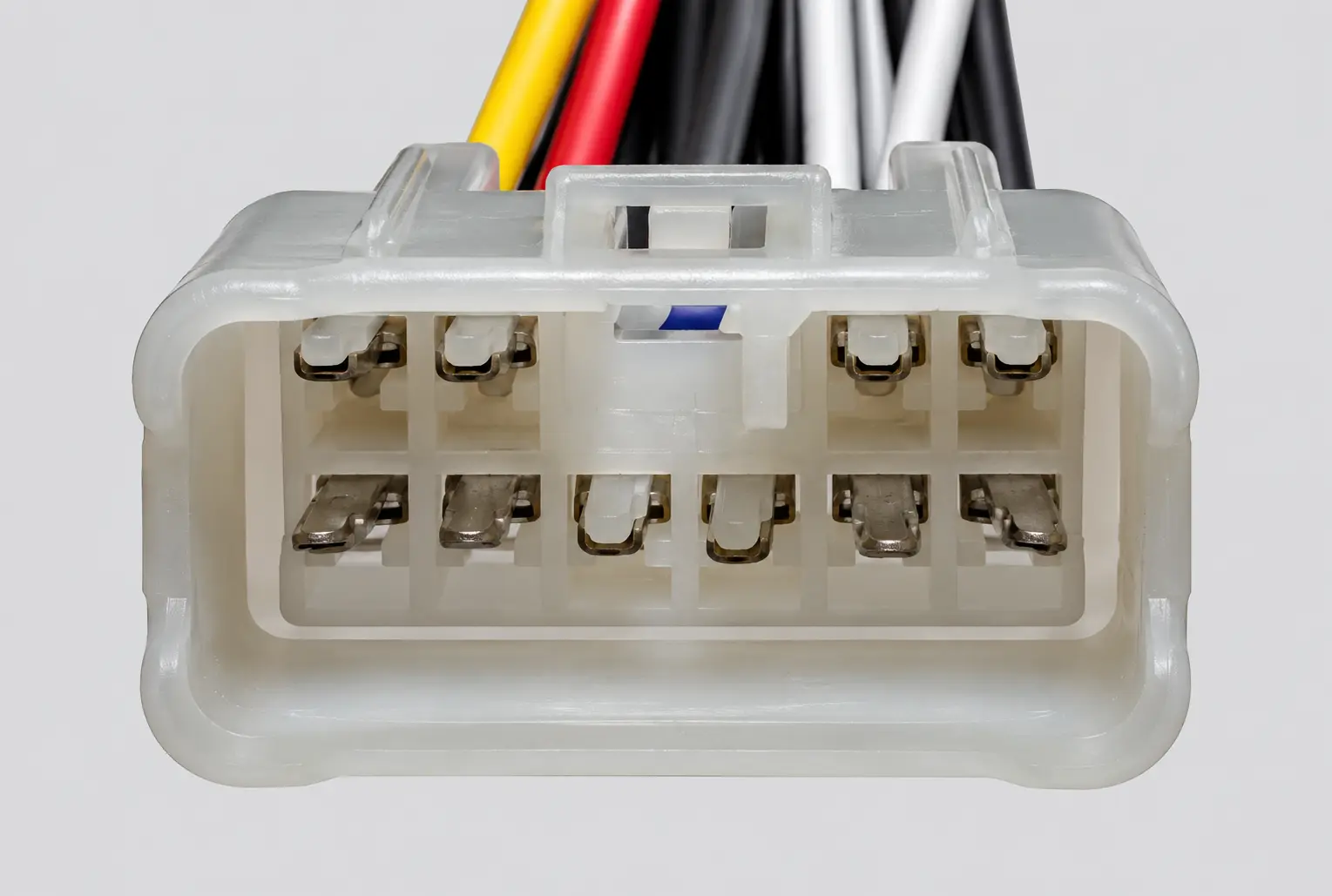

- John Deere and Hitachi equipment connector
- Universal hardwire pigtail with wiring instructions

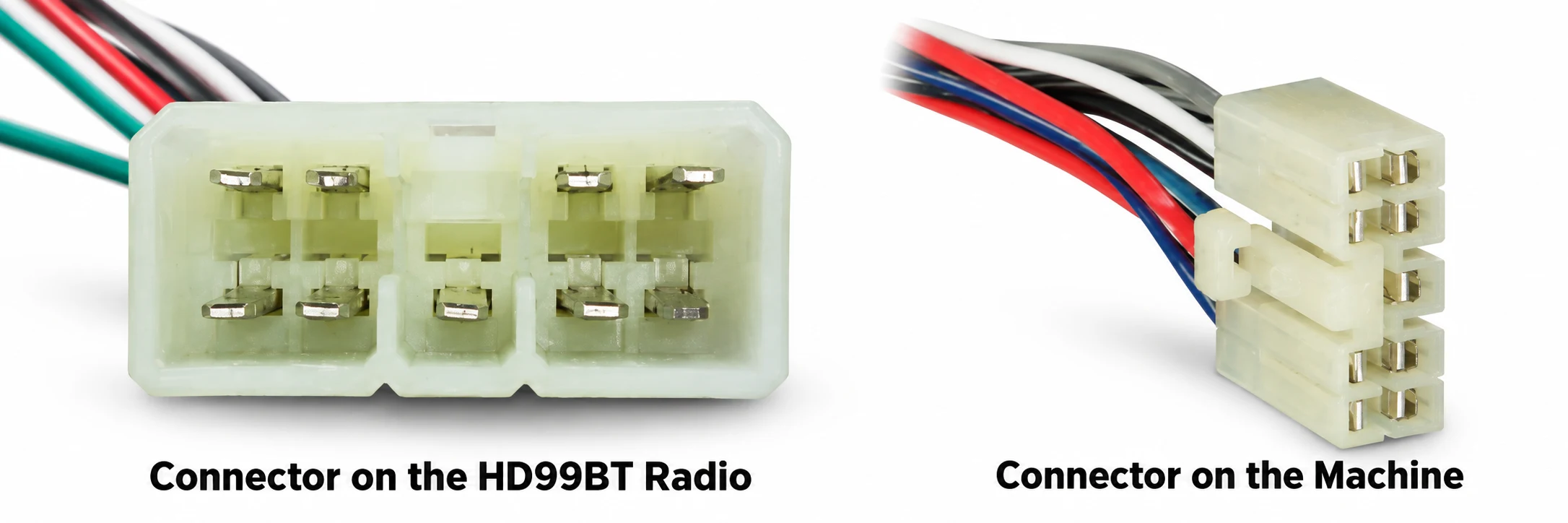

Equipment connectors can vary by model, production year and factory radio configuration. Before ordering, compare your existing connector with the product image or provide the equipment make, model and year. A photo of the original radio plug is recommended when the connection cannot be positively identified.
|
|
|
|
Bluetooth Without a Dash Radio?

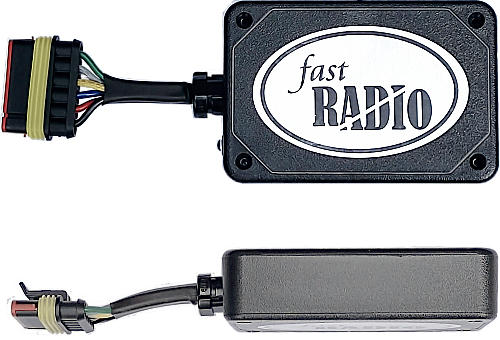

fastRADIO mounts out of sight, operates on 12 or 24 volts and streams
audio from your phone through external speakers.
RELATED HDR PRODUCT
VIEW fastRADIO
Copyright © 2008–
Heavy Duty Radios. All rights reserved.
- The HD99BT is designed for demanding construction, agricultural and commercial-equipment applications. Its weather-resistant front panel and vibration-resistant construction help protect the radio from the dust, moisture and movement commonly encountered in working equipment.

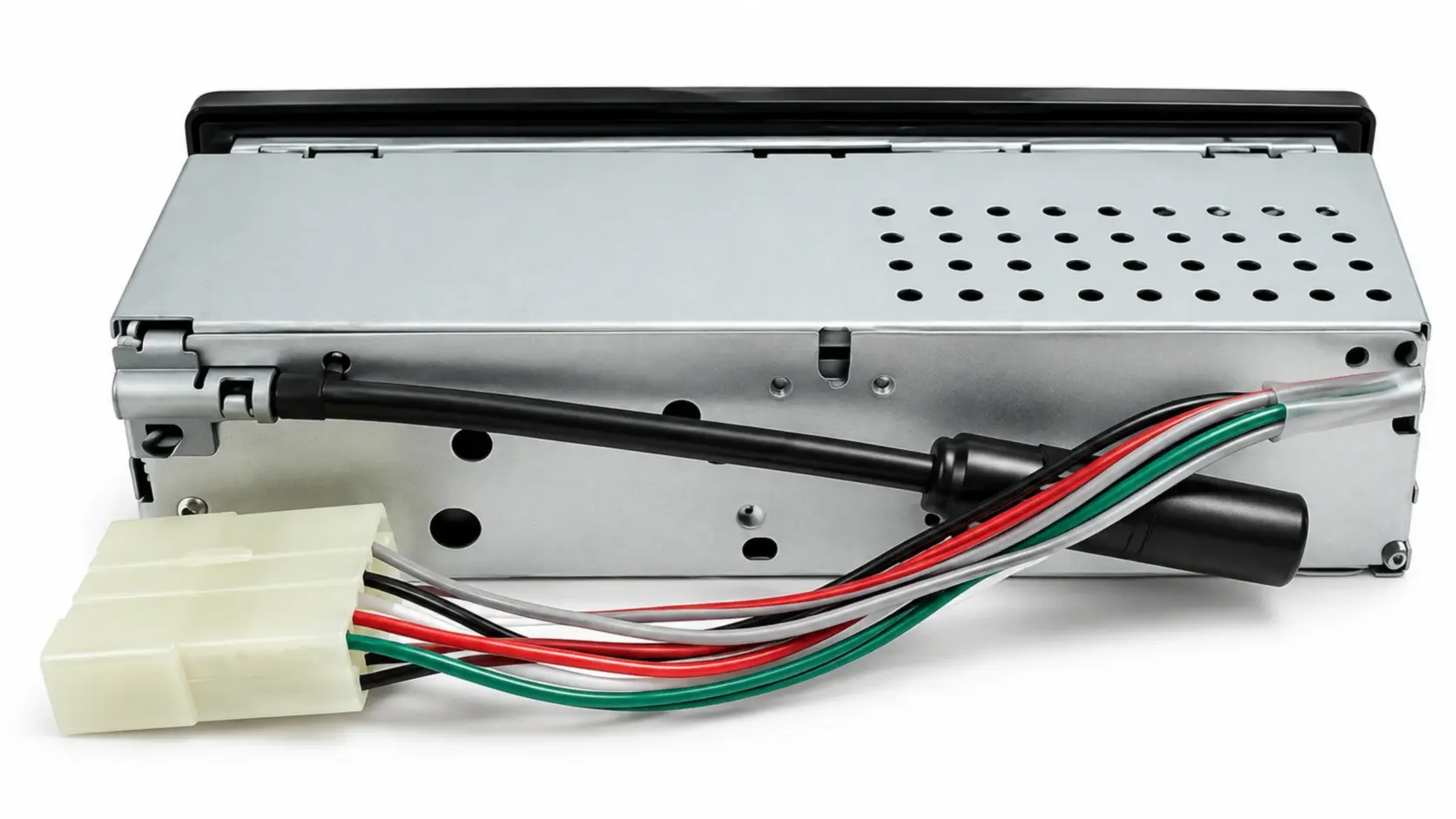

- The radio can be installed with side-mounting plates in many factory-style radio openings. It is supplied with a Komatsu-style connector for compatible excavator applications.
- Heavy Duty Radios also includes a removable universal hardwire pigtail with wiring instructions. This allows the radio to be connected in other equipment without cutting or removing the HD99BT’s original factory connector.
|
|
|
|
