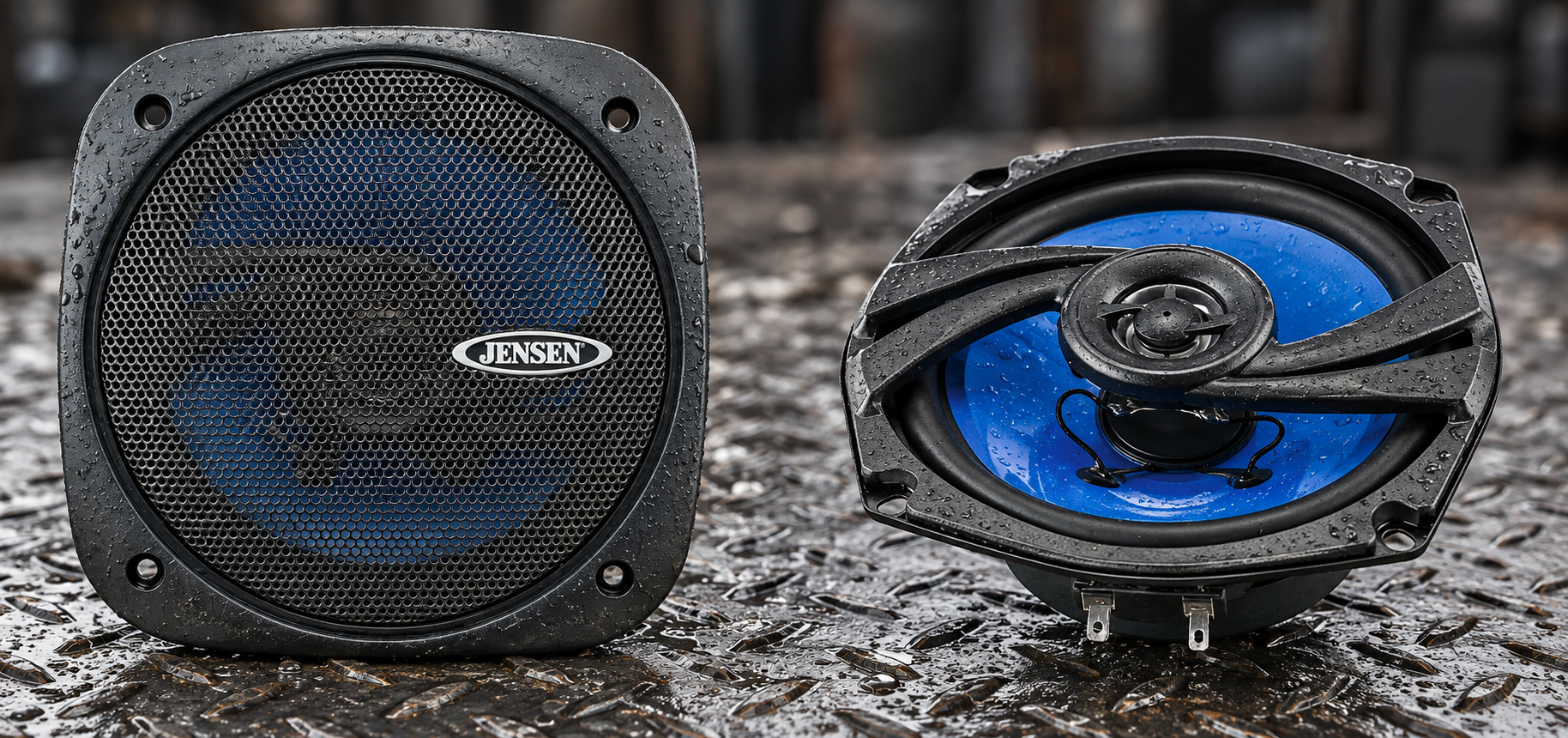

Jensen JXHD54 Heavy-Duty 5.25-Inch Speakers

The Jensen JXHD54 is a rugged 5.25-inch flush-mount speaker designed for construction equipment, agricultural machinery, utility vehicles and other demanding applications. Its larger woofer and 11-ounce magnet provide fuller sound and stronger bass response than a typical 4-inch equipment speaker.

Sold as a Pair

Heavy Duty Radios sells the JXHD54 speakers as a matched pair, giving you a complete left-and-right speaker installation.

JXHD54 Features and Specifications

• 5.25-inch heavy-duty sealed speaker
• 135 watts maximum power
• 45 watts RMS power
• 4-ohm impedance
• 84 dB sensitivity
• Frequency response: 65 Hz–20 kHz
• Polypropylene woofer
• Mylar dome tweeter
• 11-ounce magnet
• Durable black protective grille
• Grille diameter: approximately 5.5 inches
• Mounting opening: approximately 5 inches
• Mounting depth: approximately 2.125 inches
• Sold as a pair

Getting the Best Sound From the JXHD54

Flush-mount speakers perform best when installed in a baffled mounting area. The space behind the speaker does not need to be completely sealed, but it should provide enough air volume for the speaker cone to operate properly.
The 5.25-inch JXHD54 produces fuller bass and a broader sound than a smaller 4-inch speaker. Proper mounting is still important for achieving the best possible performance.

Mounting Information

The JXHD54 installs through the front of the mounting surface. Allow at least 2.125 inches of depth behind the speaker, plus additional clearance for the terminals and speaker wiring.
Always confirm the available mounting depth and compare the opening with the actual speaker before cutting the mounting surface
.
Need a Smaller Speaker?

If mounting space is limited, consider the Jensen JXHD40 4-inch speaker. For fuller sound and improved bass response, the larger JXHD54 is the better choice.

Not sure which speaker fits your equipment? View our complete selection of heavy-duty equipment speakers.
