JHD22 $279.00
866.424.0575

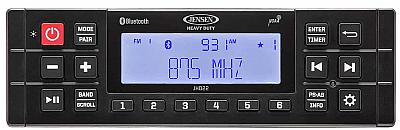

Jensen JHD22 Heavy-Duty Bluetooth Radio
Built for demanding work environments, the Jensen JHD22 combines rugged construction with modern Bluetooth audio in a compact, shallow-mount design. Stream music, podcasts and internet radio from your phone while retaining dependable AM/FM and NOAA Weatherband reception.
The water- and UV-resistant IPX5 front panel is well suited for tractors, construction equipment, commercial vehicles and other equipment exposed to dust, sunlight and changing weather conditions. Its shallow 3.53-inch mounting depth also allows installation in applications where space behind the dashboard is limited.
The water- and UV-resistant IPX5 front panel is well suited for tractors, construction equipment, commercial vehicles and other equipment exposed to dust, sunlight and changing weather conditions. Its shallow 3.53-inch mounting depth also allows installation in applications where space behind the dashboard is limited.
Key Features
- Bluetooth music streaming
- AM/FM radio with 30 presets
- NOAA seven-channel Weatherband
- 180 watts maximum power—45 watts × 4
- 100 watts RMS—25 watts × 4
- IPX5 water- and UV-resistant front panel
- Rear USB charging port—1 amp
- PA microphone input
- Rear stereo preamp output
- Amplifier remote turn-on connection
- Adjustable bass, treble, balance and fade
- Day and night display settings
- Low-voltage warning and automatic shutoff
- Built-in work timer
- 12-volt operation
- Dimensions: 7.4″ W × 2.28″ H × 3.53″ D
Important Bluetooth Note
The JHD22 supports Bluetooth audio streaming but does not provide hands-free telephone calling.
The JHD22 supports Bluetooth audio streaming but does not provide hands-free telephone calling.
Jensen Radio Replacement
The JHD22 is our recommended replacement for several discontinued Jensen heavy-duty radios, including the JHD1630, JHD1130WP and JBR550.
The JHD22 and JHD1630 use the same standard ISO-style connection and compatible wiring configuration when the original radio was installed correctly. The JBR550 uses a different connector, although the wiring colors are generally the same and can be transferred during installation.
Always compare the mounting opening and existing connector before ordering.
The JHD22 and JHD1630 use the same standard ISO-style connection and compatible wiring configuration when the original radio was installed correctly. The JBR550 uses a different connector, although the wiring colors are generally the same and can be transferred during installation.
Always compare the mounting opening and existing connector before ordering.
Copyright © 2008–
Heavy Duty Radios. All rights reserved.
Need Hands-Free Phone Calling?
The JHD22 streams music over Bluetooth but does not handle phone calls. The JENSEN JHD62 adds hands-free calling and includes a Bluetooth microphone.
RELATED RADIO
VIEW THE JHD62
What's Included
The radio we supply is the Jensen JHD22B: the JHD22 radio packaged with Jensen’s 31100100 ISO-to-blunt-cut wiring pigtail. The $20 pigtail is included in our listed price.
The radio we supply is the Jensen JHD22B: the JHD22 radio packaged with Jensen’s 31100100 ISO-to-blunt-cut wiring pigtail. The $20 pigtail is included in our listed price.
Need the JHD22 as a PA Radio?
The Jensen JHD22 has a PA microphone input. Our sister site offers the JHD22B PA package with a panel-mount microphone connector and Jensen hand microphone.
See the Jensen JHD22B PA Package
